| Socket Low Head Cap Screws |
|
« Back | Next » |
| |
| Standards : DIN 7984 - UNI 9327 |
| |
 |
| |

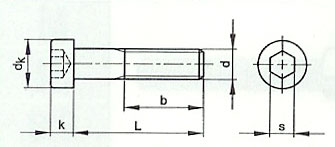

| Technical Data: |
| |
| Ø |
P |
d |
k |
s |
t |
b |
| M 3 |
0.5 |
5.5 |
2 |
2 |
1.5 |
12 |
| M 4 |
0.7 |
7 |
2.8 |
2.5 |
2.3 |
14 |
| M 5 |
0.8 |
8.5 |
3.5 |
3 |
2.7 |
16 |
| M 6 |
1 |
10 |
4 |
4 |
3 |
18 |
| M 8 |
1.25 |
13 |
5 |
5 |
3.8 |
22 |
| M 10 |
1.5 |
16 |
6 |
7 |
4.5 |
26 |
| M 12 |
1.75 |
18 |
7 |
8 |
5 |
30 |
| M 16 |
2 |
24 |
9 |
12 |
5.5 |
38 |
|
| |
|
| |
|
