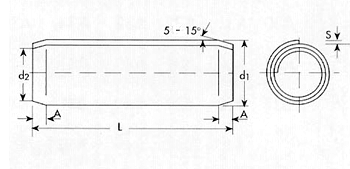

| Standards : DIN
7343 - ISO 8750 - UNI 6875 |
| |
 |
| |
| Nominal Dimensions: |
| |
| Ø |
a |
d1 |
s |
| 0.8 |
0.2 |
0.85 |
0.07 |
| 1 |
0.3 |
1.1 |
0.08 |
| 1.2 |
0.4 |
1.3 |
0.1 |
| 1.5 |
0.5 |
1.62 |
0.13 |
| 2 |
0.7 |
2.15 |
0.17 |
| 2.5 |
0.8 |
2.65 |
0.21 |
| 3 |
1 |
3.15 |
0.25 |
| 3.5 |
1.2 |
3.67 |
0.29 |
| 4 |
1.3 |
4.2 |
0.33 |
| 5 |
1.7 |
5.25 |
0.42 |
| 6 |
2 |
6.25 |
0.5 |
| 8 |
3 |
8.35 |
0.67 |
| 10 |
3 |
10.45 |
0.84 |
| 12 |
4 |
12.5 |
1 |
| 14 |
4.5 |
14.55 |
1.2 |
| 16 |
5 |
16.55 |
1.3 |
|
| |
|
| |
|
