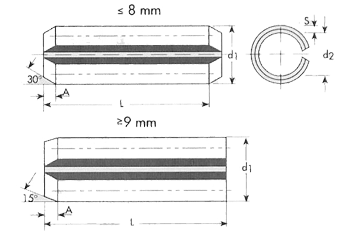

| Standards : DIN 1481
- ISO 8752 - UNI 6873 |
| |
 |
| |
| Nominal Dimensions: |
| |
| Ø |
a |
d1 |
s |
| 1 |
0.15 |
0.8 |
0.2 |
| 1.5 |
0.25 |
1.1 |
0.3 |
| 2 |
0.35 |
1.5 |
0.4 |
| 2.5 |
0.4 |
1.8 |
0.5 |
| 3 |
0.5 |
2.1 |
0.6 |
| 4 |
0.65 |
2.8 |
0.8 |
| 5 |
0.9 |
3.4 |
1 |
| 6 |
1.2 |
4 |
1.2 |
| 8 |
2 |
5.5 |
1.5 |
| 10 |
2 |
6.5 |
2 |
| 12 |
2 |
7.5 |
2.5 |
| 13 |
2 |
8.5 |
2.5 |
| 14 |
2 |
8.5 |
3 |
| 16 |
2 |
10.5 |
3 |
| 18 |
2 |
11.5 |
3.5 |
| 20 |
3 |
12.5 |
4 |
| 21 |
3 |
13.5 |
4 |
| 25 |
3 |
15.5 |
5 |
| 28 |
3 |
17.5 |
5.5 |
| 30 |
3 |
18.5 |
6 |
| 32 |
3 |
20.5 |
6 |
| 35 |
3 |
21.5 |
7 |
| 38 |
4 |
23.5 |
7.5 |
| 40 |
4 |
25.5 |
7.5 |
| 45 |
4 |
28.5 |
8.5 |
| 50 |
4 |
31.5 |
9.5 |
|
| |
|
| |
|
