| Grooved

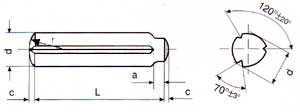

Pins Full Length Parallel Grooved |
|
« Back | Next » |
| |
| Standards : DIN 1470
- ISO 8739 |
| |
 |
| |
| Nominal Dimensions: |
| |
| d |
1 |
1.2 |
1.5 |
2 |
25 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
| c= |
0.15 |
0.18 |
0.23 |
0.3 |
0.4 |
0.45 |
0.6 |
0.75 |
0.9 |
1.2 |
1.5 |
1.8 |
2 |
2.5 |
| r= |
1 |
1.2 |
1.6 |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
16 |
16 |
| a= |
|
|
0.7 |
0.7 |
1 |
1 |
1.5 |
1.5 |
2 |
2 |
2.5 |
2.5 |
2.5 |
2.5 |
|
| |
|
| |
|
