| Hexagon

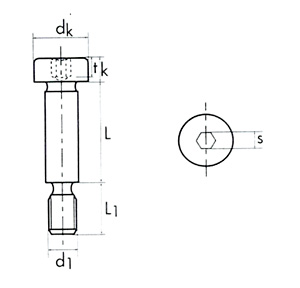

Socket Head Shoulder Screws ISO Metric Coarse Thread |
|
« Back | Next » |
| |
| Standards : ISO 7379 |
| |
 |
| |
| Technical Data: |
| |
| d |
P |
dk Max. |
s Nom. |
k Max. |
t Min. |
d1 Nom |
L1 mm |
| M 6 |
1 |
10 |
3 |
4.5 |
3.38 |
M5 |
9.5 |
| M 8 |
1.25 |
13 |
4 |
5.5 |
4.13 |
M6 |
11 |
| M 10 |
1.5 |
16 |
5 |
7 |
5.25 |
M8 |
13 |
| M 12 |
1.75 |
18 |
6 |
8 |
6 |
M10 |
16 |
| M 16 |
2 |
24 |
8 |
10 |
7.5 |
M12 |
18 |
| M 20 |
2.5 |
30 |
10 |
14 |
10.5 |
M16 |
22 |
| M 24 |
3 |
36 |
12 |
16 |
12 |
M20 |
27 |
|
| |
|
| |
|
